Draft a CAD Drawing using MS PowerPoint 2007

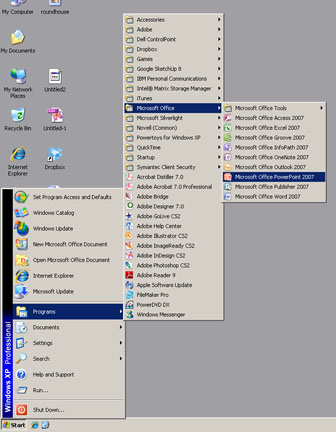

Start Microsoft PowerPoint and go to File->Save As.. to save it immediately. Remember to save your work every two minutes.

OR

Download a PowerPoint graph paper template in 1/4" scale.
(Right-click the above link and Save Target As....)

start

PowerPoint 2007 Logo

Double click on the border of the text box that reads "Click to add title." When it is selected, use the backspace key on the keyboard to delete it.

Do the same with the "Click to add subtitle" text box.

delete

Check the Ruler button from the View tab at the top of the screen (if it is not already in view).

Also check the Gridlines button. This adds a background grid to the screen that lines and shapes will snap to to make them lined up neatly.

ruler

To change the spacing of the gidlines to make them 1/4 inch (the preferred size for making floorplans to scale)

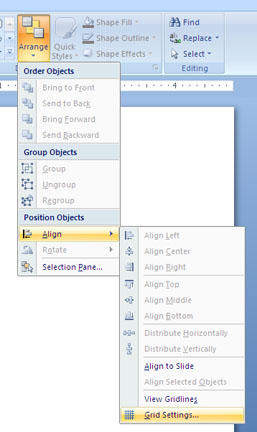

Click the Home tab on the top. Look for the Drawing section. Click Arrange->Align->Grid Settings... A Grid and Guidelines dialog box appears

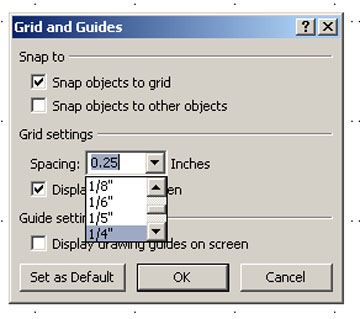

Set the Spacing for 0.25 Inches (1/4 inch). Display grid on screen should be checked.

.25 inch grid

To draw walls:

Select the line tool from the Drawing section. Drag a line in the document to create straight walls and windows. Keep lines straight by holding down the shift key on the keyboard while you drag a line.

line tool

To change the thickness of the line, do one of two things:

1) Right-click on the line you just created and choose Format Shape. This brings up the Format Shape dialog box. You can change the thickness of the line by adjusting the line Style or Weight.

OR

2) Choose Shape Outline-> Weight from the Drawing section on the Home tab.

Suggestion: Adjust the width of the line to 6 pt for walls and 3 pt for windows. Remember to draw in scale, using the top and side rulers as guides.

format shape

line style

shape outline

If you wish to change the color (or other aspects) of the line,

1) right-click the line you just drew, choose Format Shape and click on the Line Color.

OR

2) Choose Shape Outline from the Drawing section on the Home tab.





line color

shape outline

If you have been working only with the line tool, and you wish to fill in an area with color or texture (to create a floor carpet for example),

  1. Select the Freeform tool from the Drawing section.
  2. Click on each corner of the area you wish to fill, forming a closed shape that will be on top of the existing area.
  3. Right-click on that new shape to access the Format Shape dialog box and customize the area.
  4. Right-click on the shape and choose Send to Back->Send to Back to move the filled area behind other objects it may be covering.

freeform tool

send to back

To create curved lines, use the Scribble tool from the Drawing section.

scribble tool

Other useful shapes (like the Arc tool, used for showing which way a door opens) can be accessed also from the Drawing tab.

Arcs can be changed by adjusting the yellow diamonds after they are selected.

Arcs (and other shapes) can also be accessed from the Shapes menu in the Insert tab.

arc

arc

insert shape

After drafting the walls and windows, doors and closets to scale, add dimension lines. Try to draw the dimension lines outside of the floor plan of the room. Use a very thin line width (such as 1 pt) and choose arrow heads for the line style.

dimension line

Use the Shapes and drawing tools to create your own furniture. Make sure your furniture is to scale and is in proportion to your floor plan. Also make sure it is in the "from the ceiling looking down" (that is, floor plan) view

OR

To insert clip art of furniture choose Clip Art from the Insert tab.

A Search box will appear on the side of the screen. Suggested categories to search for include "furniture" and "office layout."



search

The results will appear in the same side panel. To insert an image into the floor plan, either

  1. click on it or
  2. drag it into the drawing.

Make sure that the furniture is in "floor plan view." That is, make sure it appears as if it were flat, with the viewer looking down from above.



search results

After furniture is added to the floor plan, it can be resized or rotated. For example, to rotate and resize a chair,

  1. Click on the chair. Little circles will appear around it.
  2. Drag on one of the circles to resize the chair. Hold the shift key on the keyboard to maintain its proportions.
  3. To rotate the chair, place the cursor over the green circle above the chair and press the mouse button. A circular arrow will appear. Drag the chair around.

The image to the bottom right is the resized and rotated chair from above right.

chair

rotate

Use the Text Box tool from the Insert tab to add text. Create a text box for the key, the scale, descriptions of furniture, and the total area of the room.

Also use text boxes in your dimension lines to show the length of the walls on the dimension lines.

Double-click on a text box to customize it.

f

text box edit

Click here to see a CAD drafting of a floor plan

Return to "Floor Plan Your Classroom - Step 3"
