Draft a CAD Drawing using MS PowerPoint

Start a new document in Microsoft PowerPoint and go to File->Save As... to name your document and save it immediately. Remember to save your work every two minutes.

OR

To download an MS PowerPoint graph paper template in 1/4" scale:
Windows users: right-click here and choose Save Target As...
Mac users: control-click here and choose Save.

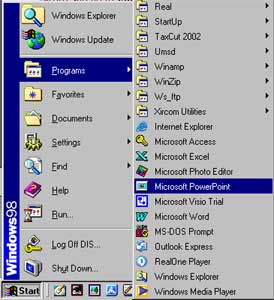

start powerpoint

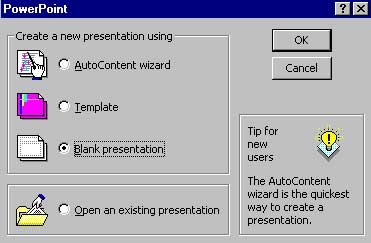

Select Blank presentation and press OK.
blank presentation

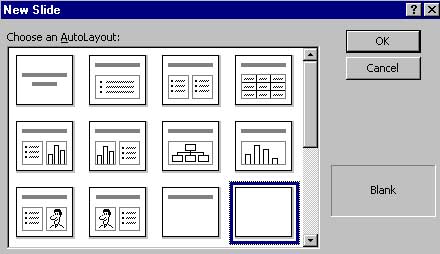

Choose Blank AutoLayout and press OK.
Display View Ruler from the View menu if it is not already in view.

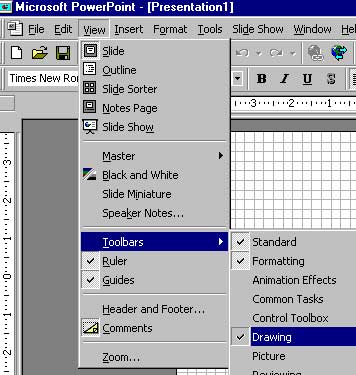

Display the Drawing Toolbar from the View menu if it is not already in view.









A Drawing Toolbar will appear attached to the bottom or side of the screen.


Windows 98 version


Macintosh 2001 version

Select the line tool from the drawing toolbar and drag a line in the document to create straight walls and windows. Keep lines straight by holding down the shift key on the keyboard while you drag a line.

To change the thickness of the line, do one of two things:

1) Double-click on the line you just created. This brings up the Format AutoShape dialog box. You can change the thickness of the line by adjusting the line Style or Weight.

OR

2) Click once on the line you just created and then choose the Line Style tool from the drawing toolbar. Select a line thickness. For more choices, choose More Lines.... This brings up the Format AutoShape dialog box.

Suggestion: Adjust the width of the line to 6 pt for walls and 3 pt for windows. Remember to draw in scale, using the top and side rulers as guides.

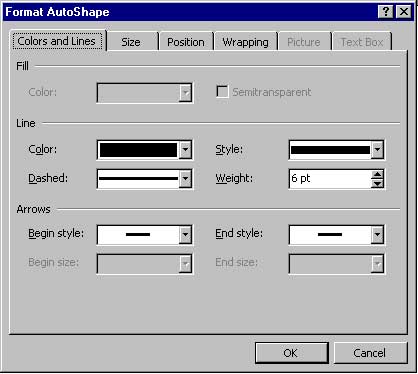

Format AutoShape dialog box

If you wish to change the color of the line, select the line you just drew and click on the Line Color tool in the drawing toolbar. For more color choices, click on the little triangle (just to the right of the tool) and choose a color from the palette that appears.

If you have been working only with the line tool, and you wish to fill in an area with color or texture (to create a floor carpet for example),

  1. Select the Freeform tool from AutoShapes->Lines.
  2. Click on each corner of the area you wish to fill, forming a closed shape that will be on top of the existing area.
  3. Double-click on that new shape to access the Format-> AutoShape dialog box and customize the area.



  4. Choose Draw-> Order-> Send to Back from the drawing toolbar to move the filled area behind other objects it may be covering.

To create curved lines, use the Scribble tool from the AutoShapes->Lines tool in the drawing toolbar.

Other useful shapes (like the Arc tool, used for showing which way a door opens) can be accessed from the Basic Shapes set of the AutoShapes tool.

After drafting the walls and windows, doors and closets to scale, add dimension lines. Try to draw the dimension lines outside of the floor plan of the room. Use a very thin line width and choose a arrow heads for the dimension line style.

If you choose to insert clip art of furniture (Insert-> Picture-> Clip Art...) make sure that the furniture is in "floor plan view." That is, make sure it appears as if it were flat, with the viewer looking down from above. Suggested categories to search for clip art include "furniture" and "office layout."

Or, use the AutoShapes, drawing, and color tools from the drawing tool bar and create your own furniture. Make sure your furniture is to scale and is in proportion to your floor plan.

Use the Text Box tool from the drawing toolbar to add text. Create a text box for the key, the scale, desciptions of furniture, and the total area of the room. Also use text boxes in your dimension lines to show the length of the walls on the dimension lines. Double-click on a text box to customize it.

Click here to see a CAD drafting of a floor plan

Return to "Floor Plan Your Classroom - Step 3"
